Newton’s method with automatic differentiation¶
In the following demo, we illustrate an example application of the
gradpy package to determine the roots of a vector-valued,
multivariate function using Newton’s method.
In [2]:
%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
from gradpy.autodiff import Var, Array
We begin by initializing a vector-valued, multivariate function
as an Array object, defined in terms of Var variables \(x\)

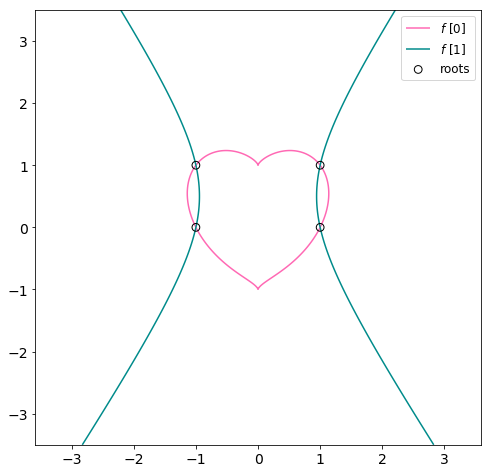

and \(y\). The zero contours of the individual components of
\(\vec{f}\) and their intersections, which correspond to the
solutions \(\vec{f}(x,y)=\mathbf{0}\), are plotted for reference.
Analytically we can determine the four intersection points to be
In [3]:
x = Var()
y = Var()
f = Array([(x**2 + y**2 - 1)**3 - x**2 * y**3, # heart-shaped contour
9./4.*x**2 - (y - 0.5)**2 - 2]) # hyperbola
def plot_f(ax):
# Plot the components and true zeros of f. Each component of f delineates a contour,
# and their intersections define the zeros of f.
xp, yp = np.meshgrid(np.arange(-3.5,3.51,0.01),np.arange(-3.5,3.51,0.01))
xz = [-1,1,1,-1]
yz = [1,1,0,0]
cs1 = ax.contour(xp,yp,(xp**2+yp**2-1)**3-xp**2*yp**3,levels=[0],colors='hotpink')
cs1.collections[0].set_label('$f$ [0]')
cs2 = ax.contour(xp,yp,9./4.*xp**2-(yp-0.5)**2-2,levels=[0],colors='darkcyan')
cs2.collections[0].set_label('$f$ [1]')
ax.scatter(xz,yz,color='none',edgecolor='k',s=60,zorder=5,label='roots')
ax.tick_params(labelsize=14)
ax.legend(fontsize=12)
ax.axis('equal')
fig, ax = plt.subplots(1,1,figsize=(8,8))
plot_f(ax)
plt.show()
Now we apply Newton’s method to numerically determine the roots of
\(\vec{f}(x,y)\); that is, the solutions to
\(\vec{f}(x,y)=\mathbf{0}\). Our implementation of a multivariate
Newton’s method which handles autodiff objects can be found in the
supplementary module newton_multivar.py. A simple example use of
newton_multivar is:
root, res, Niter, traj = newton_multivar(f, [x,y], [-3.,2.], tol=1e-12, maxiter=100000)
The input arguments are the autodiff Operation or Array object f
whose roots we seek, a list of independent Var variables [x,y], an
initial guess for each variable (here [-3.,2.]), and optional settings
for the desired tolerance on the 2-norm of the residual and maximum
number of iterations. Returned are the roots, residual, number of
iterations, and the complete trajectory of values taken by each
independent variable through the Newton’s iterations.

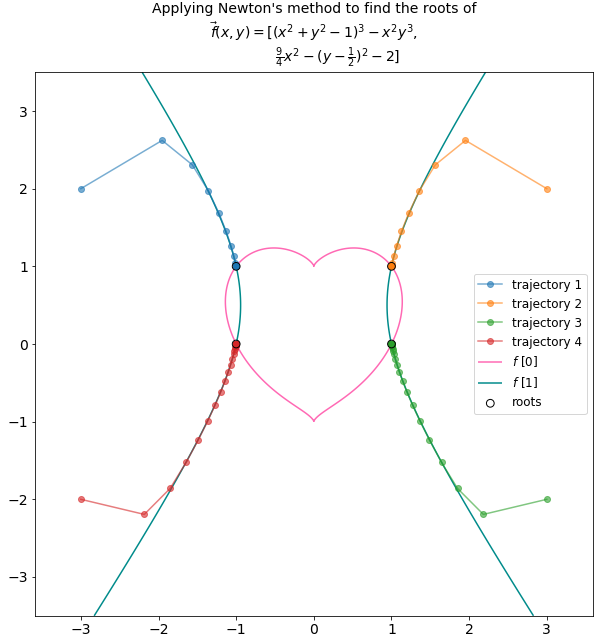

We test four different initial points to locate each of the four roots, and plot the trajectories taken by successive Newton’s method iterations in locating each root.
In [4]:
from newton_multivar import newton_multivar
fig, ax = plt.subplots(1,1,figsize=(10,10))
# test four different initial points to locate each of 4 roots.
g1 = [-3.,2.]
g2 = [3.,2.]
g3 = [3.,-2.]
g4 = [-3.,-2.]
for i,g in enumerate([g1,g2,g3,g4]):
print("Initial guess:",g)
print("----------------------")
root, res, Niter, traj = newton_multivar(f,[x,y],g)
print("Converged to root:",[float('%.8f'%r) for r in root])
print("2-norm of residual:",res)
print("Number of iterations:",Niter)
print("\n")
ax.plot(traj[:,0],traj[:,1],'o-',label='trajectory '+str(i+1),alpha=0.6)
plot_f(ax)
ax.set_title("Applying Newton's method to find the roots of\n"+
"$\\vec{f}(x,y)=[(x^2+y^2-1)^3-x^2y^3$,\n"+
" $\\frac{9}{4}x^2-(y-\\frac{1}{2})^2-2]$",size=14)
plt.show()
Initial guess: [-3.0, 2.0]
----------------------
Converged to root: [-1.0, 1.0]
2-norm of residual: 3.025026694190274e-13
Number of iterations: 12
Initial guess: [3.0, 2.0]
----------------------
Converged to root: [1.0, 1.0]
2-norm of residual: 3.025026694190274e-13
Number of iterations: 12
Initial guess: [3.0, -2.0]
----------------------
Converged to root: [1.00000038, -1.7e-06]
2-norm of residual: 6.397105068111509e-13
Number of iterations: 40
Initial guess: [-3.0, -2.0]
----------------------
Converged to root: [-1.00000038, -1.7e-06]
2-norm of residual: 6.397105068111509e-13
Number of iterations: 40
